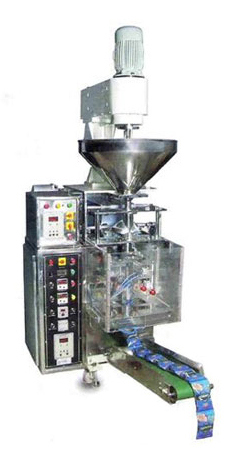

Pneumatically Operated Machine

We are one of the leading manufacturer and exporter of the specially designed Automatic Form Fill and Seal Pneumatically Operated Machines.

These machines are meant to produce center sealed pouches from a roll of any heat seal able packing material in printed or unprinted heat seal able laminate to pack various products such as tea, rice, salt, sugar, grains, coffee, spices, chips, snacks, dry fruits, confectioneries, pesticides, detergent, pharmaceuticals, etc.

Optional Features of Automatic Form Fill and Seal Pneumatically Operated Machines.
Coding Unit
Gas Flushing
Guessetting
Strip Cutting
Bucket Elevator
Screw conveyor
Stainless Steel Construction

Technical Specifications:
Sealing Type: Pillow Type.
Packing Size: Film Width :- 100 - 525 mm.
Bag Length: 50 mm to 350 mm.
Packing Range: Various Models from 10 g to 2 Kg.
Output: 10 to 60 pouches/min (Depend upon the weight and filling system).
Max. Roll Dia: 350 mm (76 mm Core).
Weight: Approx. 650 Kg.

Power Required:
Voltage: 220 V
Phase: Single Phase @ 50 Hz.
Load: 2.5 KW
Compressed Air Requirement: 2.5 Cu. Mtr/Hr @ 7 bar

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
