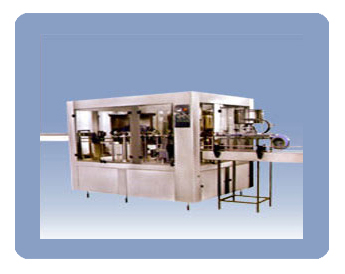

Automatic Monoblock Rinser
FAB Series Automatic Monobloc Rinser filling / Filler / Capper (for Hot Fill Juice / Water) FAB series monobloc bottling machine is designed for hot filling of juices / water. The advanced micro-negative filling ensures accurate brim filling. It encorporates special designed hot filling valves which can easily be cleaned (CIP). The machine is controlled through touch screen PLC which controls the entire operation such as "No-Bottle-No-Cap". Also the inbuilt temperature sensing ensures that the beverage is not filled below the set Filling temperature. Automatic flow control valves ensure that the excess beverage flows back to overflow holding tank. The model can also be adopted for filling.
Technical Specifications:
| Model | FAB-H 12-12-4 | FAB-H 16 -16-5 | FAB-H 18-18-6 | FAB-H 24-24-8 |
| Capacity (b/hr) | 3000 | 5000 | 8000 | 12000 |
| Rinsing heads | 12 | 16 | 18 | 24 |
| Filling heads | 12 | 16 | 18 | 24 |
| Capping heads | 4 | 5 | 6 | 8 |
| Bottle dia | 50-90 | |||
| Bottle height (mm) | 150-320 | |||
| Power (kw) | 3.13 | 3.84 | 4.1 | 5.6 |
| Dimensions (mm) | 2250x1640x2100 | 2430x1800x2100 | 3050x2060x2100 | 4050x2300x2100 |
| Weight (kg) | 2500 | 3000 | 4000 | 5000 |
We Manufacture and Exporting Machines as per your special Specifications and Requirements.
