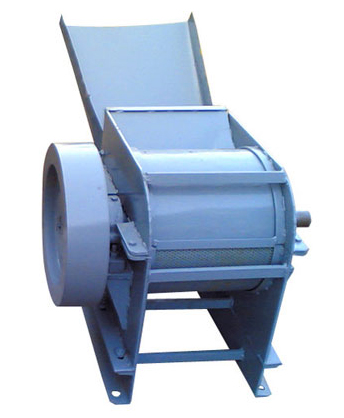

Hammer Mill Grinder Machine

Hammer Mill Grinder is used for grinding of biomass waste & residues such as rice husk, groundnut shell, wood chips, cotton shell/stalks, mustard husk/stalk, sugar cane trash & baggasse etc before the raw material can be densified.

Hammer Mill Grinder has large diameter dynamically balanced rotor. Its body is made from tested plate, alloy steel shaft. For long life bearings are wide, dust protected and fitted away from grinder body which guarantees continuous production and performance. Grinder blades are fitted with rotor. At bottom screen is is fitted for particular size of ground material It is able to run two machines 24 hours. Balanced Hammer system ensures silent running and absorbs intermittent loads and shocks mounted on Anti Vibration Mounting Pads for vibration isolation with ground.

Material is fed through feeding conveyor into wide in-feed opening of Hammer Mill. Swinging hammers takes the material into grinding chamber to crush the material on to the stationary liners before driving them through a screen at the bottom. Size of screen and hammers determine the size of crushed particles. Material at bottom is sucked by pneumatic system and conveyed to Cyclone. Material is then ready for densification by briquetting or palletizing.
