Flour Sifter Machine

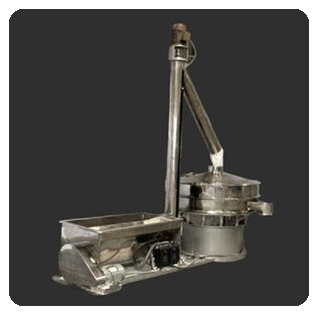

The Flour Sifter is used for sieving flour to remove foreign materials such as insects, sack threads etc. from the flour to make good quality biscuits. The Flour Sifter is designed Vibratory type fully automatic including feeding system, with all the contact parts in Stainless Steel.

Capacity:
1200 kg to 4200 kg / hr

We Manufacture and Exporting Machines as per your special Specifications and Requirements.

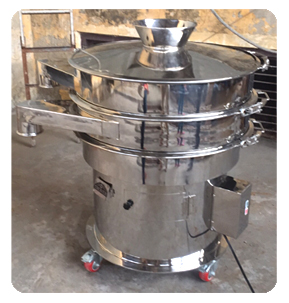

Single Decker Flour Sifter Dia 910mm

APPLICATIONS:
Pharmaceuticals, chemicals, dyestuff, pigments, ceramics, Food products, detergent, cosmetics, paints, polyester chips, rubber compound etc.

SILIENT FEATURES:

FASTER IN PRODUCTION.
PORTABLE AND COMPACT DESIGN.
LOWER ENERGY CONSUMPTION COMPARED TO RECIPROCATING VIBRATORY SYSTEM.
EASY DISMANTLING & CLEANING FACILITY CONTACT PARTS.
ALL CONTACT PARTS & SCREEN OF S.S. 304 QLTY. & NON-CONTACT PART SS304 QUALITY.

TECHNICAL SPECIFICATIONS:

MODEL : 36” DIA.(910 MM)
BASE SHELL : 3 MM THICK SS304
BOTTOM HOPPER : 1.6MM THICK SS304
MIDDLE HOPPER : 1.6MM THICK SS304
TOP LID : 1.6MM THICK SS304
SCREEN : 910 MM DIA
CLAMP : S.S. 304-3 NOS.
MOTOR : 1.0 HP/1440 RPM III PHASE.
CHARGING HEIGHT : 1250 MM.
DISCHARGING HEIGHT : 750/900 MM.
OVERALL DIMENSION (MM) : 1250 X 1050 X 1250 MM. (HT.)
OUTPUT/HOUR : 300 TO 500 KG/HR (DEPENDING UPON SCREEN)

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
